18kW Rack-mount DC Telecom Power System Modular Design for BTS Cabinet
Product Overview of 18kW Rack-mount DC Telecom Power System
The 18kW rack-mounted DC power system is a high-capacity solution designed for telecom networks, data centers, and industrial facilities requiring reliable DC supply. It supports 380VAC three-phase input, delivering a stable –43 to –58VDC output with a rated value of –53.5VDC. With a maximum capacity of 18kW, this system ensures sufficient power for large-scale applications while maintaining efficiency above 96%.
The system integrates up to 6 rectifier modules(N+1 redundancy), each rated at 3000W and weighing ≤2kg. These modules feature forced cooling, high power factor ≥0.99, and THD ≤5%, ensuring clean and stable DC power conversion. With front maintenance, top cable entry, and IP20 protection, the design prioritizes safety, serviceability, and ease of integration into 19-inch racks.
DC distribution includes 2*80A/2P battery breakers and 2*LLVD & 1*BLVD, providing flexible and secure load management. The intelligent controller supports 2 analog inputs, 8 digital inputs, 8 dry contact alarms, and remote communication via RS232/485 and SNMP. Local monitoring is enabled through an LCD display.
Built for challenging environments, the unit operates from –40℃ to +65℃, withstands 5–95% non-condensing humidity, and maintains stable operation at altitudes up to 3000m. With its modular architecture and robust performance, the 18kW 5U DC power system is an ideal choice for critical infrastructure requiring scalable and dependable energy solutions.
AC&DC Specification of 18kW Rack-mount DC Telecom Power System
|
AC
Distribution
|
Input mode
Input frequency
AC SPD
|
380VAC three-phase
45~65Hz, rated value: 50Hz/60Hz
20kA/40kA, 8/20μs
|
|
DC
Distribution
|
Output |
-43~-58VDC, rated value: -53.5VDC |
| Maximum capacity |
18kw(6*3000w rectifier module, N+1 redundancy) |
| Battery MCB |
2*80A/2P |
|
Load MCB&SPD
|
LLVD1: 1*32A/1P+2*63A/1P+1*80A/1P
LLVD2: 1*32A/1P+2*63A/1P+1*80A/1P
BLVD: 4*10A/1P+2*20A/1P
DC SPD: 10kA, 8/20μs
|
Rectifier of 18kW Rack-mount DC Telecom Power System
-
Input voltage: 85VAC～300VAC, rated 220VAC
-
Efficiency: >96%
-
Rated power: 3000W (176–300VAC)
-
Working temperature: –40℃ ~ +75℃ (full output below 50℃)
-
Dimension: 106.5mm(W) × 286mm(D) × 41.5mm(H) (1U/H)
-
Weight: ≤2kg
-
Cooling mode: Forced cooling
-
Power factor: ≥0.99
-
THD: ≤5%
-
DC output: –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller of 18kW Rack-mount DC Telecom Power System
-
Signal input: 2 AI (1 Battery temp., 1 ambient temp), 8 DI
-
Alarm output: 8 dry contact
-
Communication port: RS232/485, SNMP
-
Display mode: LCD

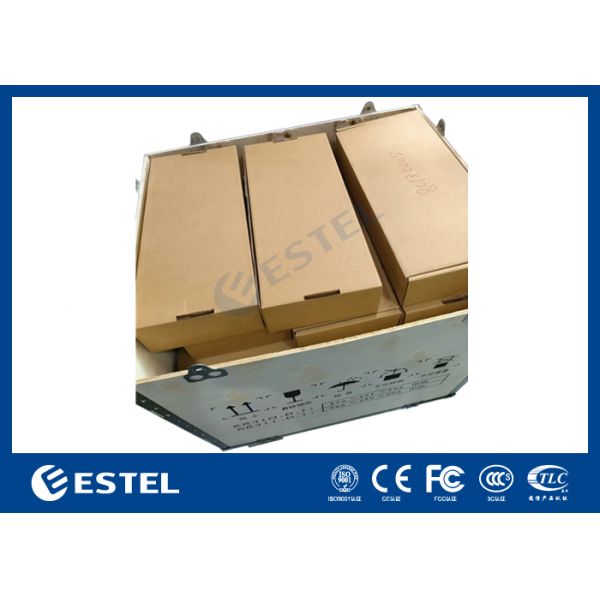

Package of 18kW Rack-mount DC Telecom Power System
