Small Size Power Supply Enclosure With Heater , Pole Mounted Network Switch Box Model ERU0101

Name: Small Size Power Supply Enclosure With Heater Pole Mounted Network Switch Box Model ERU0101
Brand: Estel
Price: 143 USD

China Small Size Power Supply Enclosure With Heater , Pole Mounted Network Switch Box Model ERU0101 factory

Brand Name : Estel

Model Number : ERU0101

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : 143-1429 usd

Payment Terms : L/C, D/A, D/P, MoneyGram, T/T

Supply Ability : 3,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Material : Metal

Model : ERU0101

Weight : 15KG

Door : With one front door

Protection level : IP55,IP65

Application : Telecommunication, base station, Electronic ect, Outdoor Electronic Equipment, FTTX Network/Telecom

Color : Customized

Size : H500mm×W380mm×D220mm

Breakers : Customized

Contact Now

Small Size Power Supply Enclosure With Heater Pole Mounted Network Switch Box Model ERU0101

Key Features:

Outdoor PoE switch

AC 100~240V, 50/60Hz, 10A IN;

With 8 *10/100M PoE ports and 2*1000M SFP ports;

240W power module with backup power

Features

Provide 1 channel AC220V power input, 1 channels of AC power output ;

With 8*10/100/1000M PoE downlink ports and 2*1000M SFP ports, with L2 network management;

Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;

6KV surge protection, 6KV contact / 8KV air ESD protection.

The box adopts waterproof (protection level Ip55), anti-rust treatment, suitable for long time outdoor use.

Box

Parameter	Specifications
Power supply	AC power supply
Range of voltage	AC100~240V,50/60HZ
Power supply	With backup power, self-consumption<15W, PoE output 170W max
Heater and controller	50W, with auto temperature controller
Fiber tray	4*SC
Control unit	With door open/closed detecting, SPD detecting and RS485
10/100 network port	1*10/100Base-TX
Connect	13*PG7,waterproof
Reset key	>5s press recovery to factory default
Working temperature	-40℃~65℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(H×W×D)	500mm×380mm×220mm
Material	Metal
Colour	White
Net-weight	15KG

Switch:

Parameter	Specifications
Ethernet ports parameter	1~8 ports: 10/100Base-T 30W PoE RJ45(IEEE802.3af/at) 9~10 ports: 1000M SFP slots
Working mode	Extend: 1~8 ports Max. 250m transmission, 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control. Default: common switch. VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control.
Cable and distance	Use cat5e/6, 100m max.
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	5.6Gbps
Though put	4.2Mpps
Buffer	12KB
MAC address table	4K
Power	1 *red
Uplink 9~10	Green LEDs indicate Link/Act
Downlink 1~8	Green LEDs indicate Link/Act, yellow LEDs indicate PoE
Surge	6KV, standard: IEC61000-4-5
ESD	6KV: contact / 8KV: air, standard:IEC61000-4-2

Dimension and destails:

Small Size Power Supply Enclosure With Heater , Pole Mounted Network Switch Box Model ERU0101

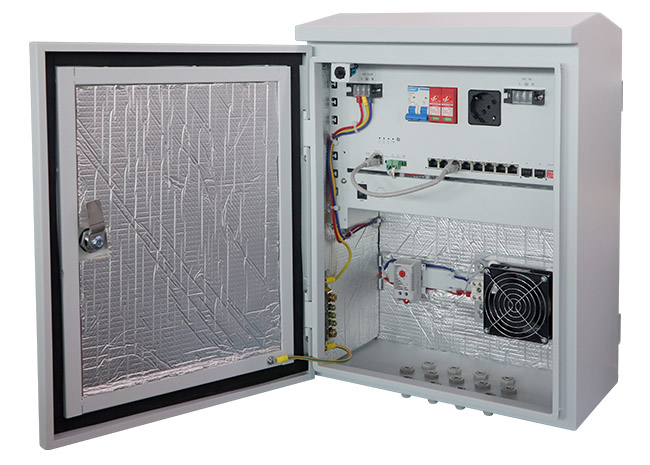

Product pictures:

Woodcase packaging:

Small Size Power Supply Enclosure With Heater , Pole Mounted Network Switch Box Model ERU0101
